Wire Rope Isolators Manufacturer India

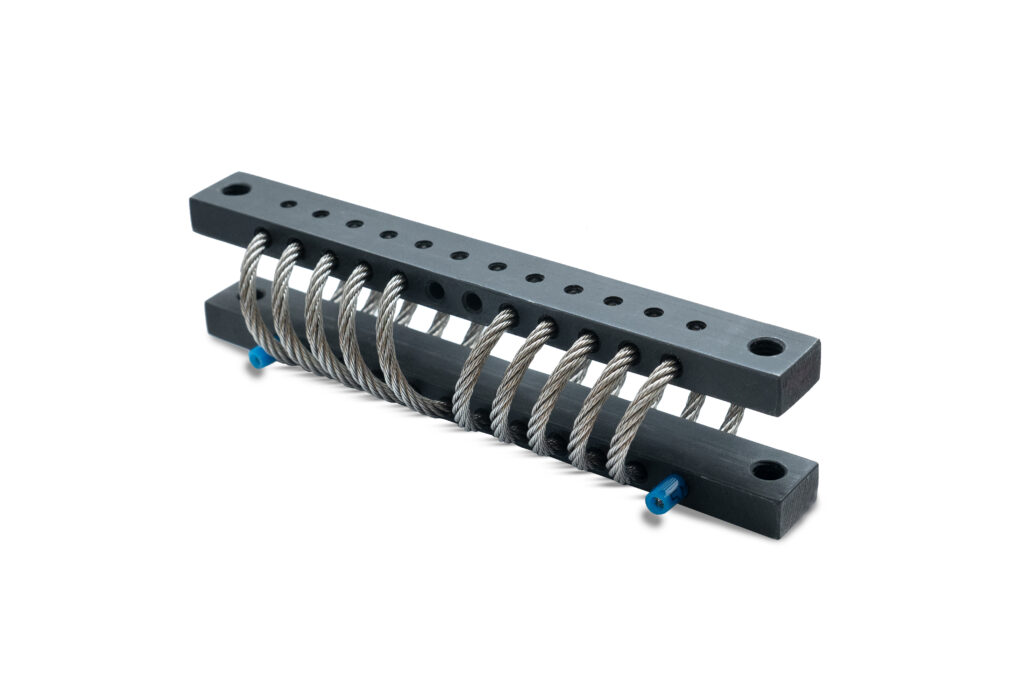

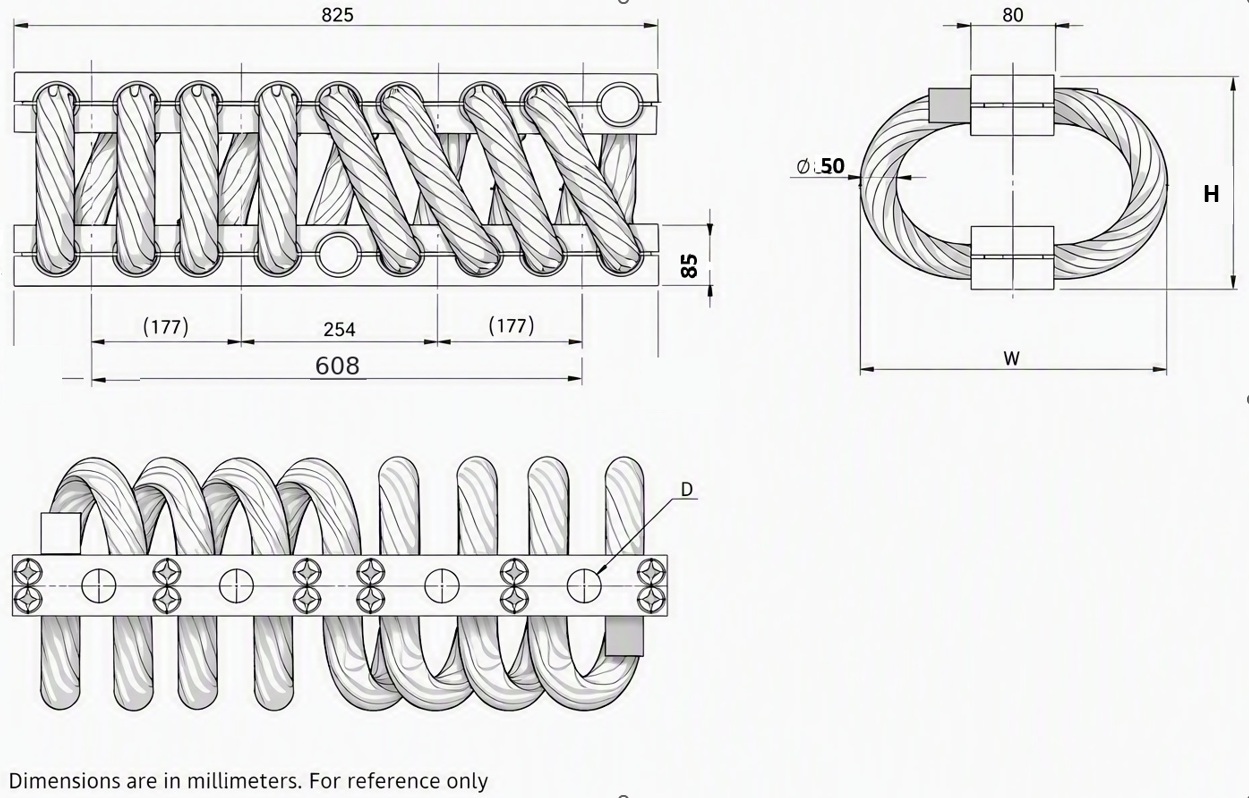

Wire Rope Isolator

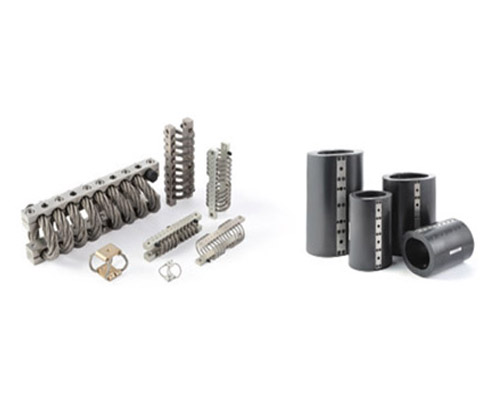

A Wire Rope Isolator is a robust and versatile vibration isolation device made from stainless-steel wire ropes that are looped and clamped between metal mounting bars. It is designed to absorb and reduce shock, vibration, and noise in various mechanical systems and equipment. These isolators are particularly valued for their durability, wide temperature tolerance, and ability to perform under extreme conditions

Ensure the safety and longevity of your equipment with Adonitech’s Wire Rope Isolators, the ultimate solution for shock and vibration isolation. Designed for durability and high performance, our wire rope isolators are crafted to deliver optimal vibration damping, noise reduction, and equipment protection across diverse industries

Key Features

Applications

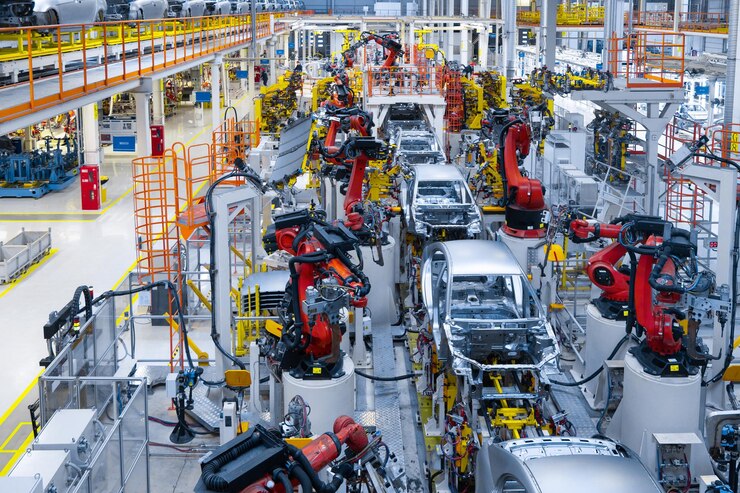

Adonitech Wire Rope Isolators are trusted across industries

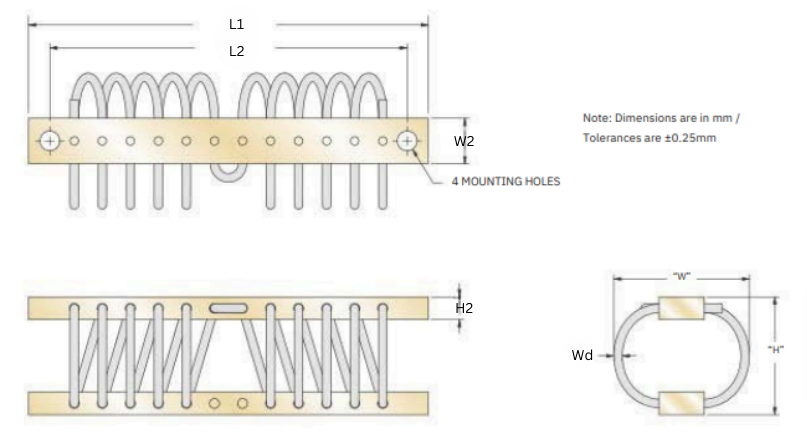

Dimensions and Specifications

Wire Rope Vibration Isolators

Compact Wire Rope Vibration Isolators

Wire Rope Vibration Isolators

WR2 Series

Model	Height (“H”) mm		Width (Re) mm	Unit Weight Kg	Mounting Options	Thru Hole mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR2-100	18	25 ± 1.52	25	0.02	B, D, E	Ø4.7 ± 0.13	M4 X 0.7	90°	79.5	68.3	10.2	4.1	1.6
WR2-200	20		28	0.02
WR2-400	25		30	0.03
WR2-600	28		33	0.03
WR2-700	30		36	0.03
WR2-800	33		38	0.03

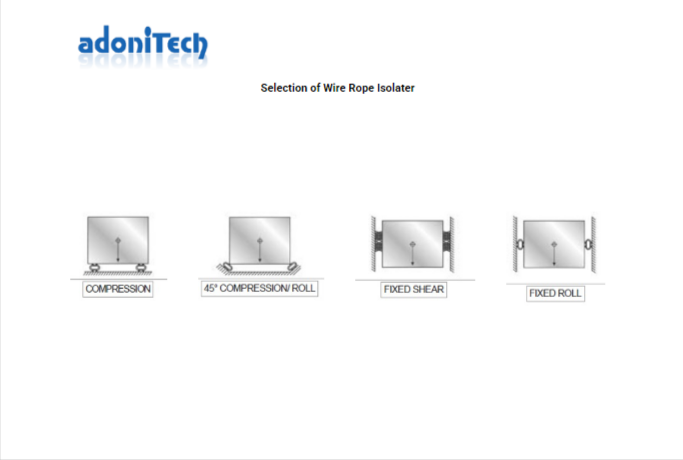

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR2-100	47.0	8.6	36.0	22.0
2	WR2-200	36.0	9.7	25.0	16.0
3	WR2-400	31.0	14.7	17.0	8.8
4	WR2-600	27.0	17.8	12.0	6.1
5	WR2-700	22.0	18.8	11.0	5.3
6	WR2-800	20.0	21.8	7.9	3.9

45° Compression / Rol

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR2-100	33.0	11.7	20.0	11.4
2	WR2-200	24.0	14.7	14.0	7.0
3	WR2-400	24.0	20.8	11.0	4.7
4	WR2-600	18.0	24.9	7.0	3.0
5	WR2-700	18.0	26.9	6.1	2.6
6	WR2-800	16.0	31.0	5.3	1.9

Shear/Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR2-100	22.0	8.6	14.0	14.0
2	WR2-200	18.0	10.7	8.8	8.8
3	WR2-400	16.0	15.7	5.3	5.3
4	WR2-600	13.0	18.8	3.9	3.9
5	WR2-700	13.0	19.8	3.2	3.2
6	WR2-800	11.0	22.9	2.3	2.3

WR3 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR3-100	23	± 1.52	28	0.06	B, D, E	Ø5.6 ± 0.13	M5 X 0.8	90°	112.3	100.3	12.7	4.4	2.4
WR3-200	25		30	0.07
WR3-400	28		33	0.07
WR3-600	33		38	0.07
WR3-700	36		41	0.07
WR3-800	38		43	0.08

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR3-100	85.0	8.6	65.0	40.0
2	WR3-200	76.0	10.7	51.0	30.0
3	WR3-400	62.0	13.7	37.0	19.0
4	WR3-600	44.0	17.8	23.0	11.0
5	WR3-700	40.0	20.8	18.0	7.9
6	WR3-800	40.0	22.9	16.0	7.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR3-100	62.0	12.7	38.0	20.0
2	WR3-200	53.0	15.7	28.0	14.0
3	WR3-400	44.0	18.8	21.0	9.6
4	WR3-600	36.0	25.9	13.0	5.6
5	WR3-700	31.0	27.9	11.0	4.4
6	WR3-800	27.0	32.0	9.6	3.5

Shear/Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR3-100	44.0	9.7	24.0	24.0
2	WR3-200	40.0	11.7	18.0	48.0
3	WR3-400	31.0	13.7	12.0	12.0
4	WR3-600	27.0	18.8	7.0	7.0
5	WR3-700	22.0	21.8	5.3	5.3
6	WR3-800	18.0	23.9	4.4	4.4

WR4 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR4-100	28	± 1.52	36	0.12	B, D, E	Ø6.9 ± 0.13	M6 X 1.0	90°	127	114.3	14.3	7.9	3.2
WR4-200	30		38	0.12	B, D, E
WR4-400	33		41	0.13	A, B, C, D, E, S
WR4-500	36		43	0.13
WR4-600	38		46	0.13
WR4-700	41		48	0.14
WR4-800	43		51	0.14

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR4-100	213.0	9.7	154.0	91.0
2	WR4-200	194.0	11.7	124.0	68.0
3	WR4-300	166.0	13.7	13.7	51.0
4	WR4-400	156.0	16.8	16.8	39.0
5	WR4-500	142.0	18.8	18.8	32.0
6	WR4-600	133.0	21.8	21.8	25.0
7	WR4-700	117.0	23.9	23.9	21.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR4-100	149.0	13.7	86.0	46.0
2	WR4-200	138.0	17.3	70.0	35.0
3	WR4-300	118.0	19.8	53.0	25.0
4	WR4-400	111.0	23.9	44.0	20.0
5	WR4-500	102.0	26.9	39.0	16.0
6	WR4-600	94.0	31.0	32.0	12.0
7	WR4-700	84.0	34.0	26.0	11.0

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR4-100	111.0	9.7	56.0	56.0
2	WR4-200	98.0	11.7	43.0	43.0
3	WR4-300	93.0	14.7	31.0	31.0
4	WR4-400	85.0	17.8	25.0	25.0
5	WR4-500	80.0	19.8	19.0	19.0
6	WR4-600	71.0	22.9	16.0	16.0
7	WR4-700	62.0	25.9	12.0	12.0

WR5 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR5-200	30	± 1.52	41	0.15	B, D, E	Ø6.9 ± 0.13	M6 X 1.0	90°	127	114.3	14.3	7.9	4
WR5-400	33		43	0.15	B, D, E
WR5-600	38		48	0.16	A, B, C, D, E, S
WR5-800	46	± 3.30	53	0.17
WR5-900	53	± 3.30	64	0.18

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR5-200	364.0	12.7	222.0	117.0
2	WR5-400	309.0	14.7	170.0	88.0
3	WR5-600	257.0	19.8	116.0	54.0
4	WR5-800	216.0	24.9	84.0	37.0
5	WR5-900	172.0	32.9	58.0	23.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR5-200	254.0	17.8	123.0	60.0
2	WR5-400	218.0	21.8	96.0	42.0
3	WR5-600	182.0	27.9	66.0	28.0
4	WR5-800	151.0	35.6	48.0	18.0
5	WR5-900	115.0	44.7	31.0	11.0

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR5-200	178.0	12.7	73.0	73.0
2	WR5-400	156.0	15.7	53.0	53.0
3	WR5-600	133.0	20.8	33.0	33.0
4	WR5-800	111.0	25.9	23.0	23.0
5	WR5-900	33.5	33.5	7.9	7.9

WR6 Series

Model	Height (“H”) mm		Width (Re) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR6-200	30	± 1.52	36	0.19	D	Ø6.9 ± 0.13	M6 X 1.0	90°	127	114.3	14.3	9.5	4.8
WR6-300	33		38	0.20	D
WR6-400	36		41	0.21	B, D, E
WR6-500	38		43	0.21	A, B, C, D, E, S
WR6-600	41		46	0.22
WR6-700	43		48	0.25
WR6-800	51		58	0.26
WR6-850	54	± 3.30	75	0.27
WR6-900	62		88	0.28
WR6-950	81		107	0.29

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR6-200	734.0	8.6	578.0	363.0
2	WR6-300	712.0	11.7	455.0	252.0
3	WR6-400	601.0	13.7	347.0	189.0
4	WR6-500	578.0	15.7	301.0	152.0
5	WR6-600	512.0	18.8	244.0	117.0
6	WR6-700	489.0	20.8	212.0	96.0
7	WR6-800	365.0	26.9	136.0	58.0
8	WR6-850	236.0	29.5	82.0	33.0
9	WR6-900	178.0	36.6	54.0	21.0
10	WR6-950	120.0	52.8	29.0	10.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR6-200	534.0	12.7	341.0	179.0
2	WR6-300	512.0	16.8	258.0	126.0
3	WR6-400	432.0	19.8	197.0	93.0
4	WR6-500	409.0	22.9	172.0	75.0
5	WR6-600	373.0	26.9	141.0	58.0
6	WR6-700	350.0	29.0	123.0	49.0
7	WR6-800	260.0	38.1	77.0	28.0
8	WR6-850	177.0	41.7	49.0	18.0
9	WR6-900	136.0	51.3	33.0	11.0
10	WR6-950	91.0	74.7	18.0	5.3

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR6-200	356.0	8.6	224.0	22.4
2	WR6-300	356.0	11.7	156.0	156.0
3	WR6-400	334.0	16.8	112.0	112.0
4	WR6-500	311.0	19.8	93.0	93.0
5	WR6-600	289.0	19.8	70.0	70.0
6	WR6-700	267.0	21.8	60.0	60.0
7	WR6-800	200.0	27.9	35.0	35.0
8	WR6-850	58.0	31.0	11.0	11.0
9	WR6-900	40.0	38.1	5.3	5.3
10	WR6-950	22.0	55.9	2.3	2.3

WR8 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR8-200	48	± 2.54	56	0.38	A, B, C, D, E, S	Ø6.9 ± 0.13	M6 X 1.0	90°	146.1	68.3	15.9	12.7	–
WR8-400	54		64	0.41
WR8-500	59		71	0.43
WR8-600	64		80	0.47
WR8-700	64		89	0.52
WR8-800	67	± 3.81	95	0.54
WR8-850	67		100	0.57
WR8-900	83		108	0.59

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR8-200	778.0	17.8	382.0	182.0
2	WR8-400	667.0	23.9	266.0	116.0
3	WR8-50	556.0	29.0	196.0	79.0
4	WR8-600	445.0	32.0	151.0	60.0
5	WR8-700	386.0	32.0	127.0	51.0
6	WR8-800	351.0	35.6	109.0	42.0
7	WR8-850	325.0	35.6	100.0	39.0
8	WR8-900	297.0	50.8	74.0	25.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR8-200	556.0	25.9	215.0	89.0
2	WR8-400	467.0	34.0	151.0	58.0
3	WR8-50	390.0	39.6	109.0	40.0
4	WR8-600	321.0	45.7	86.0	30.0
5	WR8-700	273.0	45.7	72.0	25.0
6	WR8-800	248.0	50.8	61.0	21.0
7	WR8-850	229.0	50.8	56.0	19.0
8	WR8-900	209.0	71.6	41.0	12.0

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR8-200	423.0	18.8	110.0	110.0
2	WR8-400	356.0	24.9	72.0	72.0
3	WR8-50	311.0	30.0	49.0	49.0
4	WR8-600	245.0	34.0	37.0	37.0
5	WR8-700	222.0	34.0	32.0	32.0
6	WR8-800	200.0	38.1	25.0	25.0
7	WR8-850	178.0	38.1	23.0	23.0
8	WR8-900	156.0	52.8	16.0	16.0

WR12 Series

6-Loop

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR12-206	71	± 2.54	84	0.83	A, B, C, D, E, S	+ 0.13 Ø9.0 -0.38	M6 X 1.0	90°	169.2	155.6	25.4	16.3	–
WR12-306	74		89	0.85
WR12-406	76		105	0.90
WR12-506	83		108	0.95
WR12-606	89		108	0.98
WR12-706	105		121	1.07
WR12-806	108		140	1.12

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR12-206	712.0	49.8	137.0	84.0
2	WR12-306	601.0	71.1	92.0	35.0
3	WR12-406	445.0	52.8	44.0	44.0
4	WR12-506	341.0	91.9	44.0	16.0
5	WR12-606	280.0	95.0	36.0	12.0
6	WR12-706	156.0	71.1	15.0	15.0

WR12 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR12-200	71	± 2.54	84	1.10	A, B, C, D, E, S	+ 0.13 Ø9.0 -0.38	*M8 X 1.25	90°	215.9	155.6	25.4	16.3	–
WR12-300	74		89	1.13
WR12-400	76		105	1.20
WR12-500	83		108	1.26
WR12-600	89		108	1.30
WR12-700	105		121	1.43
WR12-800	108		140	1.50

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR12-200	14681.0	34.0	366.0	179.0
2	WR12-300	119.0	47.8	236.0	10.0
3	WR12-400	912.0	36.1	130.0	130.0
4	WR12-500	1090.0	51.8	208.0	3.0
5	WR12-600	867.0	39.1	112.0	11.0
6	WR12-700	890.0	55.9	159.0	88.0
7	WR12-800	667.0	42.2	77.0	77.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR12-200	979.0	44.7	205.0	91.0
2	WR12-300	823.0	63.0	137.0	65.0
3	WR12-400	623.0	47.2	65.0	65.0
4	WR12-500	778.0	71.1	123.0	54.0
5	WR12-600	601.0	52.8	60.0	60.0
6	WR12-700	467.0	91.9	60.0	47.0
7	WR12-800	267.0	68.1	27.0	27.0

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR12-200	423.0	68.1	67.0	26.0
2	WR12-300	373.0	95.0	47.0	21.0
3	WR12-400	200.0	71.1	19.0	19.0

WR16 Series

6-Loop

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR16-206	76	± 2.54	92	1.36	A, B, C, D, E, S	+ 0.13 Ø9.0 -0.38	*M8 X 1.25	90°	177.8	155.6	25.4	19.6	–
WR16-306	83		102	1.43
WR16-406	89		105	1.50
WR16-606	95		121	1.67
WR16-706	108		133	1.81
WR16-806	124		144	2.02
WR16-856	137		156	2.18
WR16-906	155		180	2.31

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR16-206	2736.0	32.0	716.0	352.0
2	WR16-306	2291.0	38.1	531.0	249.0
3	WR16-406	2157.0	43.2	461.0	208.0
4	WR16-606	1735.0	48.8	343.0	147.0
5	WR16-706	1468.0	59.9	256.0	103.0
6	WR16-806	1290.0	74.7	296.0	72.0
7	WR16-856	1134.0	85.9	154.0	54.0
8	WR16-906	912.0	102.6	111.0	37.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR16-206	1935.0	44.7	405.0	177.0
2	WR16-306	1624.0	52.8	298.0	126.0
3	WR16-406	1535.0	61.0	263.0	105.0
4	WR16-606	1223.0	68.6	194.0	74.0
5	WR16-706	1045.0	84.8	144.0	51.0
6	WR16-806	912.0	105.7	110.0	37.0
7	WR16-856	801.0	121.9	88.0	28.0
8	WR16-906	623.0	144.8	62.0	19.0

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR16-206	1490.0	33.0	221.0	221.0
2	WR16-306	1223.0	40.1	156.0	156.0
3	WR16-406	1134.0	45.2	130.0	130.0
4	WR16-606	912.0	50.8	91.0	91.0
5	WR16-706	601.0	56.9	60.0	60.0
6	WR16-806	445.0	77.7	46.0	46.0
7	WR16-856	334.0	90.9	33.0	33.0
8	WR16-906	222.0	107.7	23.0	23.0

WR16 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR16-206	76	± 2.54	92	1.81	A, B, C, D, E, S	+ 0.13 Ø9.0 -0.38	*M8 X 1.25	90°	215.9	155.6	25.4	19.6	12.7
WR16-306	83		102	1.91
WR16-406	89		105	2.00
WR16-606	95		121	2.22
WR16-706	108		133	2.40
WR16-806	124		144	2.70
WR16-856	137		156	2.90
WR16-906	155		180	3.09

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR16-200	3648.0	32.0	954.0	471.0
2	WR16-300	3047.0	38.1	708.0	333.0
3	WR16-400	2869.0	43.2	613.0	278.0
4	WR16-600	2313.0	48.8	457.0	196.0
5	WR16-700	1957.0	59.9	340.0	137.0
6	WR16-800	1735.0	74.7	261.0	96.0
7	WR16-850	1512.0	85.9	207.0	74.0
8	WR16-900	1201.0	102.6	148.0	49.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR16-200	2580.0	44.7	539.0	236.0
2	WR16-300	2157.0	52.8	398.0	168.0
3	WR16-400	2046.0	61.0	349.0	138.0
4	WR16-600	1624.0	68.6	259.0	98.0
5	WR16-700	1401.0	84.8	193.0	68.0
6	WR16-800	1223.0	105.7	147.0	49.0
7	WR16-850	1068.0	121.9	117.0	37.0
8	WR16-900	823.0	144.8	83.0	25.0

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR16-200	2936.0	33.0	294.0	294.0
2	WR16-300	1713.0	40.1	207.0	207.0
3	WR16-400	1557.0	45.2	173.0	173.0
4	WR16-600	1201.0	50.8	121.0	121.0
5	WR16-700	801.0	56.9	81.0	81.0
6	WR16-800	601.0	77.7	60.0	60.0
7	WR16-850	445.0	90.9	46.0	46.0
8	WR16-900	289.0	107.7	30.0	30.0

WR20 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR20-200	89	± 3.30	102	3.00	C, D	+ 0.13 Ø11.0 -0.38	M10 X 1.5	90°	368.3	266.7	38.1	40	13.5
WR20-300	99		112	3.20	A, B, C, D, E, S
WR20-400	102		121	3.40
WR20-600	109		135	3.70
WR20-700	119		152	4.00
WR20-800	127		165	4.31
WR20-900	135		178	4.63

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR20-200	6450.0	31.8	1676.0	849.0
2	WR20-300	5471.0	38.1	1259.0	609.0
3	WR20-400	5071.0	41.9	1105.0	504.0
4	WR20-600	4204.0	49.5	821.0	356.0
5	WR20-700	3514.0	58.4	616.0	252.0
6	WR20-800	3180.0	67.3	511.0	196.0
7	WR20-900	2802.0	73.7	427.0	159.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR20-200	4537.0	45.7	951.0	419.0
2	WR20-300	3981.0	54.6	741.0	305.0
3	WR20-400	3581.0	59.7	627.0	250.0
4	WR20-600	2980.0	71.1	468.0	177.0
5	WR20-700	2491.0	83.8	350.0	124.0
6	WR20-800	2246.0	94.0	285.0	98.0
7	WR20-900	1979.0	10.2	238.0	81.0

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR20-200	3514.0	34.3	524.0	524.0
2	WR20-300	3025.0	40.6	375.0	375.0
3	WR20-400	2624.0	43.2	308.0	308.0
4	WR20-600	2135.0	52.1	215.0	215.0
5	WR20-700	1512.0	61.0	152.0	152.0
6	WR20-800	1223.0	69.9	123.0	123.0
7	WR20-900	979.0	76.2	98.0	98.0

WR28 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR28-200	133	± 6.35	140	8.40	C, D	+ 0.13 Ø13.5 – 0.38	M12 X 1.75	90°	368.3	266.7	38.1	40	–
WR28-400	152		165	9.53	A, B, C, D, E, S
WR28-600	159		178	9.90
WR28-800	191		210	11.50
WR28-900	216		235	12.70
WR28-950	216		286	13.90

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR28-200	12.3	50.8	2362.0	1010.0
2	WR28-400	9.4	67.3	1513.0	585.0
3	WR28-600	8.5	74.9	1270.0	469.0
4	WR28-800	6.5	102.9	800.0	263.0
5	WR28-900	5.4	125.7	585.0	180.0
6	WR28-950	3.7	125.7	377.0	138.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR28-200	8.7	72.4	1348.0	503.0
2	WR28-400	6.7	96.5	860.0	289.0
3	WR28-600	6.0	105.2	712.0	235.0
4	WR28-800	4.5	144.8	448.0	11.0
5	WR28-900	3.3	177.8	327.0	89.0
6	WR28-950	2.1	177.8	212.0	70.0

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR28-200	6.1	53.3	618.0	618.0
2	WR28-400	3.5	71.1	356.0	356.0
3	WR28-600	2.9	77.5	291.0	291.0
4	WR28-800	1.6	108.0	163.0	163.0
5	WR28-900	1.1	132.1	112.0	112.0
6	WR28-950	0.8	132.1	77.0	77.0

WR36 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR36-200	178	± 6.35	216	20.9	A, B, C, D, E, S	+ 0.13 Ø19.8 – 0.38	M18 X 2.5	90°	520.7	377.8	50.8	52.5	28.6
WR36-400	216		241	24.0
WR36-600	235		260	25.0

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR36-200	16.9	67.3	27061.0	1044.0
2	WR36-400	14.50	102.9	774.0	583.0
3	WR36-600	12.8	119.4	1415.0	445.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR36-200	12.0	96.5	1541.0	518.0
2	WR36-400	9.9	144.8	993.0	292.0
3	WR36-600	8.0	168.9	799.0	222.0

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	WR36-200	6.3	71.1	636.0	636.0
2	WR36-400	3.60	108.0	361.0	361.0
3	WR36-600	2.7	125.7	275.0	275.0

WR40 Series

Model	Height (“H”) mm		Width (Ref) mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric	L1	L2	W2	H2	WD
WR40-200	178	± 6.35	210	24.0	A, B, C, D, E, S	+ 0.13 Ø19.8 – 0.38	M18 X 2.5	90°	520	377.8	50.8	52.5	31.8
WR40-400	216	± 6.35	248	27.2	A, B, C, D, E, S	+ 0.13 Ø19.8 – 0.38	M18 X 2.5	90°

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
4	WR40-200	21.6	67.3	3468.0	1338.0
5	WR40-400	17.6	96.5	2236.0	758.0

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
4	WR40-200	15.30	96.5	1968.0	664.0
5	WR40-400	12.4	137.2	1256.0	378.0

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
4	WR40-200	8.3	71.1	839.0	839.0
5	WR40-400	4.6	101.6	468.0	468.0

Compact Wire Rope Vibration Isolators

CR1 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR1-100	17	± 1.52	19	3.1	A, B, C, D, E, S	Ø3.30	M3 X 0.5	90°
CR1-200	19		20	3.1
CR1-300	23		23	3.4
CR1-400	26		26	3.4

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR1-100M	3.3	6.4	3.9	1.9
2	CR1-200M	2.4	8.4	2.8	1.2
3	CR1-300M	1.8	11.9	1.8	0.6
4	CR1-400M	1.3	15.0	1.31	0.4

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR1-100M	1.6	8.6	2.1	0.8
2	CR1-200M	1.1	10.9	1.5	0.4
3	CR1-300M	0.8	14.7	0.9	0.3
4	CR1-400M	0.5	18.3	0.5	0.1

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR1-100M	1.1	7.9	0.7	0.7
2	CR1-200M	0.9	9.9	0.4	0.4
3	CR1-300M	0.7	13.2	0.3	0.3
4	CR1-400M	1.5	16.3	0.1	0.1

CR2 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR2-100	16	± 1.52	20	3.7	A, B, C, D, E, S	Ø3.30	M3 X 0.5	90°
CR2-200	19		21	4.0
CR2-300	23		24	4.3
CR2-400	27		27	4.5

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR2-100M	12.0	5.8	11.0	6.1
2	CR2-200M	9.3	8.4	8.8	4.0
3	CR2-300M	6.7	11.7	5.3	1.9
4	CR2-400M	4.9	15.7	3.5	1.2

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR2-100M	5.8	8.1	6.1	2.8
2	CR2-200M	4.9	10.9	5.3	1.9
3	CR2-300M	3.3	14.5	3.2	1.0
4	CR2-400M	2.2	19.1	1.9	0.5

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR2-100M	5.6	7.4	3.0	3.0
2	CR2-200M	4.0	9.9	1.8	1.8
3	CR2-300M	2.9	13.0	1.1	1.1
4	CR2-400M	2.0	17.3	0.5	0.5

CR3 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR3-100	19	± 1.52	22	5.7	A, B, C, D, E, S	Ø3.30	M3 X 0.5	90°
CR3-200	23		24	6.2
CR3-300	27		27	6.8
CR3-400	33		30	7.4

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR3-100M	29.0	7.1	24.0	12.0
2	CR3-200M	22.0	10.4	12.0	6.1
3	CR3-300M	18.0	14.2	8.4	3.5
4	CR3-400M	11.0	19.3	5.8	1.9

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR3-100M	12.0	9.4	14.0	5.3
2	CR3-200M	10.0	13.2	8.8	3.2
3	CR3-300M	6.7	17.3	5.8	1.8
4	CR3-400M	4.4	22.9	3.5	0.9

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR3-100M	12.0	8.4	6.1	6.1
2	CR3-200M	8.5	11.9	3.5	3.5
3	CR3-300M	6.2	15.5	1.8	1.8
4	CR3-400M	4.4	20.6	1.1	1.1

CR4 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR4-100	42	± 1.52	47	40	A, B, C, D, E, S	Ø7.00	M6 X 1.0	90°
CR4-200	53		54	40
CR4-300	60		59	43
CR4-400	75		68	48

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR4-100M	24.0	19.6	12.0	5.8
2	CR4-200M	18.0	29.7	6.0	2.5
3	CR4-300M	13.0	35.8	4.4	1.6
4	CR4-400M	6.7	49.3	2.2	0.70

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR4-100M	11.0	19.3	6.4	28.0
2	CR4-200M	6.7	29.5	3.1	11.0
3	CR4-300M	5.3	37.1	22.0	0.70
4	CR4-400M	3.6	52.3	1.1	0.4

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR4-100M	8.5	17.3	1.9	1.9
2	CR4-200M	7.1	26.4	1.1	1.1
3	CR4-300M	5.3	33.3	0.70	0.70
4	CR4-400M	3.3	47.0	0.4	0.4

CR5 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR5-100	41	± 1.52	48	45	A, B, C, D, E, S	Ø7.00	M6 X 1.0	90°
CR5-200	53		54	48
CR5-300	60		59	51
CR5-400	76		67	57

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR5-100M	80.0	19.6	22.0	11.0
2	CR5-200M	38.0	28.7	11.0	4.4
3	CR5-300M	27.0	34.8	7.9	3.2
4	CR5-400M	16.0	49.3	4.4	1.4

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR5-100M	24.0	18.3	12.0	6.1
2	CR5-200M	13.0	28.4	5.3	2.3
3	CR5-300M	11.0	36.1	3.6	1.4
4	CR5-400M	6.7	53.8	1.9	0.70

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR5-100M	20.0	16.5	4.4	4.4
2	CR5-200M	13.0	25.7	2.1	2.1
3	CR5-300M	11.0	32.5	1.4	1.4
4	CR5-400M	6.7	48.5	0.70	0.70

CR6 Series

Model	Height (“H”) mm		Width (Ref) “W” mm	Unit Weight Kg	Mounting Options	Thru mm	Thread mm	C’Sink Metric
CR6-100	47	± 1.52	54	57	A, B, C, D, E, S	Ø7.00	M6 X 1.0	90°
CR6-200	55		59	62
CR6-300	64		64	65
CR6-400	79		73	74

Compression

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR6-100M	142.0	22.1	32.0	16.0
2	CR6-200M	93.0	29.5	20.0	9.6
3	CR6-300M	67.0	37.6	15.0	5.3
4	CR6-400M	36.0	51.6	7.9	2.6

45° Compression / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR6-100M	40.0	22.9	16.0	7.9
2	CR6-200M	33.0	30.5	9.6	5.3
3	CR6-300M	22.0	38.1	7.9	2.8
4	CR6-400M	13.0	53.3	3.5	1.2

Shear / Roll

Curve	Model	Max. Static Load (N)	Max. Deflection (mm)	kv Vibration (kN/m)	Ks (Shock) (kN/m)
1	CR6-100M	40.0	20.6	7.9	7.9
2	CR6-200M	30.0	27.4	4.4	4.4
3	CR6-300M	22.0	34.3	2.6	2.6
4	CR6-400M	16.0	48.0	1.6	1.6

Why Choose Adonitech Wire Rope Isolators?

FAQ

what kind of
classes do you offer?

*Initial one-to-one consultation, Health & Fitness Assasments Bespoke training program planing, Custom Nutrition plan & recipes. Weekly Progress Reviews

what kind of
classes do you offer?

*Initial one-to-one consultation, Health & Fitness Assasments Bespoke training program planing, Custom Nutrition plan & recipes. Weekly Progress Reviews

How to Buy

Service & Support

For technical support & service please contact Mr. Krishnakant – +91 932284965 or fill out the form

Key Features

Durable Stainless Steel Construction

Multidirectional Isolation

Wide Temperature Tolerance

Maintenance-Free

Customizable Options

Compact and Lightweight

Applications

Defense and Aerospace

Medical Equipment

Industrial Machinery

Automotive and Transportation

Electronics

Wire Rope Isolator Catalogue

Sizing Calculator

WR2 Series

Compression

45° Compression / Rol

Shear/Roll

WR3 Series

Compression

45° Compression / Roll

Shear/Roll

WR4 Series

Compression

45° Compression / Roll

Shear / Roll

WR5 Series

Compression

45° Compression / Roll

Shear / Roll

WR6 Series

Compression

45° Compression / Roll

Shear / Roll

WR8 Series

Compression

45° Compression / Roll

Shear / Roll

WR12 Series

Shear / Roll

WR12 Series

Compression

45° Compression / Roll

Shear / Roll

WR16 Series

Compression

45° Compression / Roll

Shear / Roll

WR16 Series

Compression

45° Compression / Roll

Shear / Roll

WR20 Series

Compression

45° Compression / Roll

Shear / Roll

WR28 Series

Compression

45° Compression / Roll

Shear / Roll

WR36 Series

Compression

45° Compression / Roll

Shear / Roll

WR40 Series

Compression

45° Compression / Roll

Shear / Roll

CR1 Series

Compression

45° Compression / Roll

Shear / Roll

CR2 Series

Compression

45° Compression / Roll

Shear / Roll

CR3 Series

Compression

45° Compression / Roll

what kind of
classes do you offer?

what kind of
classes do you offer?
